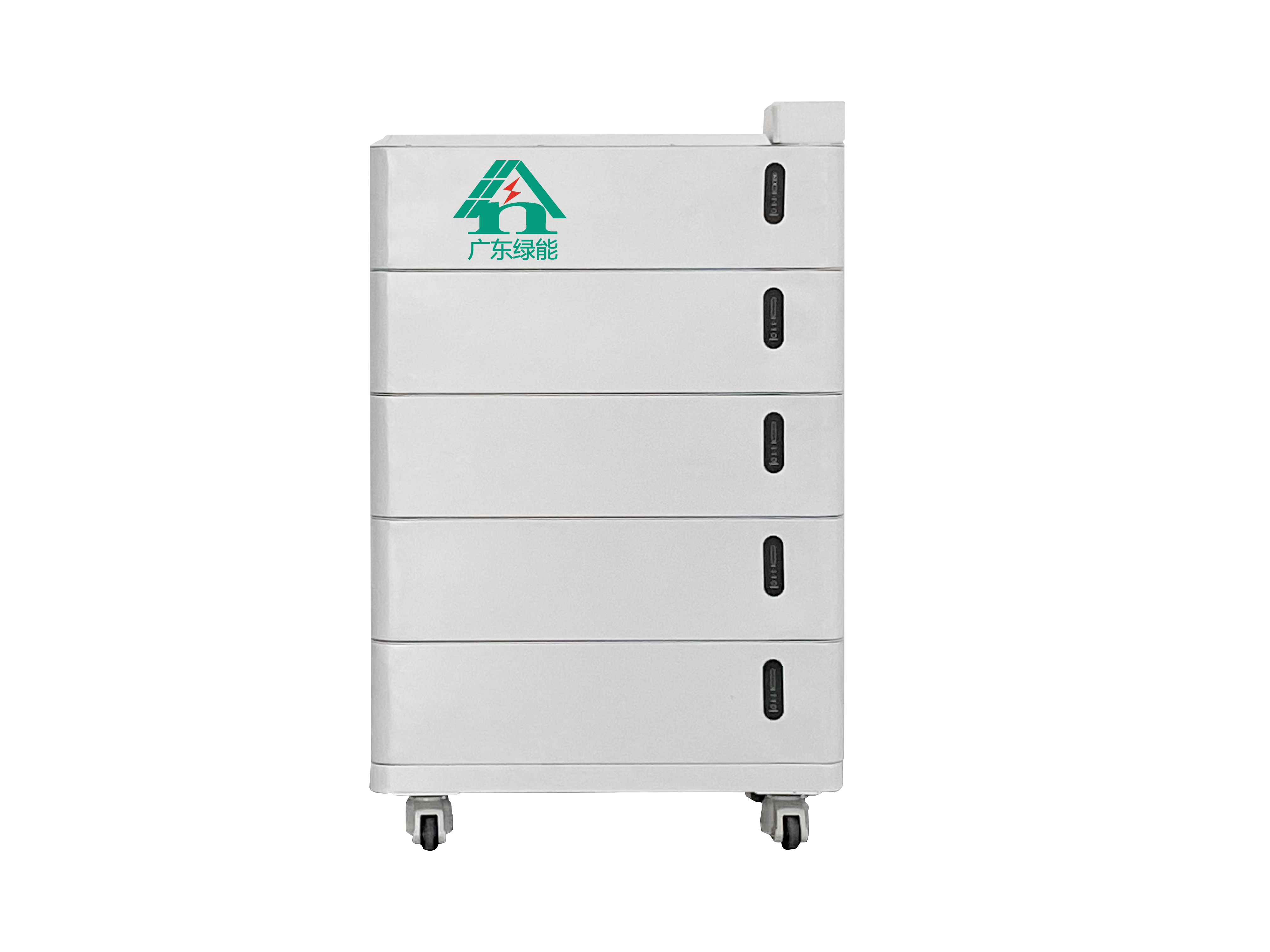

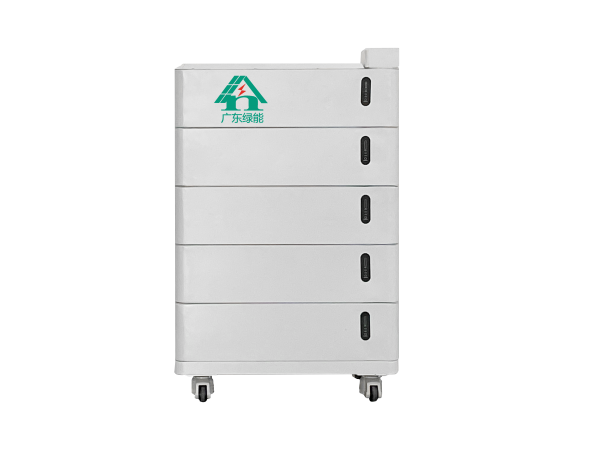

Stacked models energy storage lithium battery

20+ safety checkpoints, 100%Aging test

-40℃ low temperature, stable operation of cold storage Operation

15 years of automotive-grade BMS technology Iteration

Complete isolation of charging and discharging

Full Process Autonomous Dynamic Learning Algorithms

Automatic protection against parallel circulating currents

2C fast charging, 30 minutes full

96V-800V/300A-600A

Description

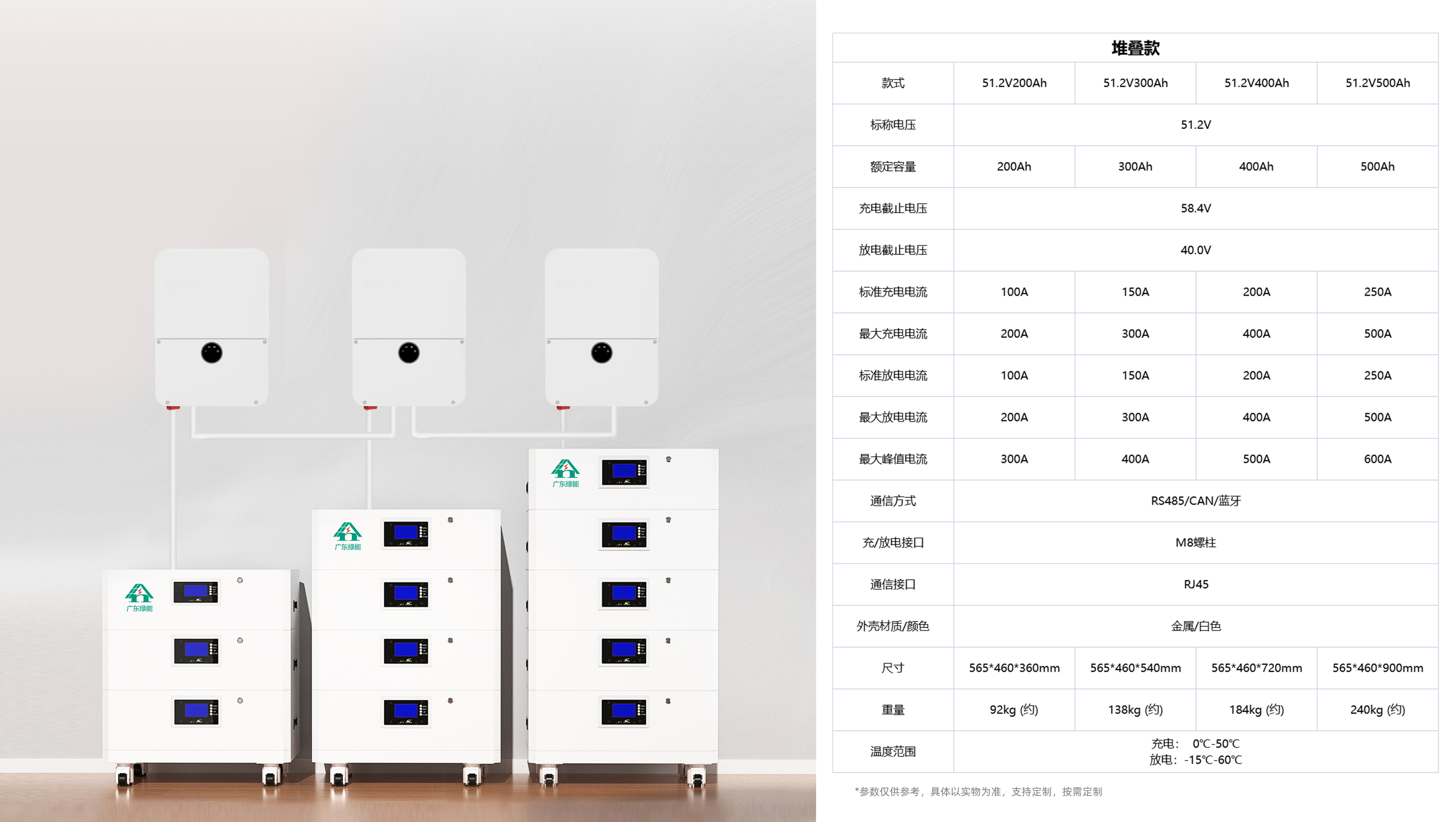

Stacked models
Styles	51.2V20OAh	51.2V30OAh	51.2V40OAh	51.2V50OAh
Nominal voltage	51.2V
Rated capacity	200Ah	300Ah	40oAh	50OAh
Charge cut-off voltage	58.4V
Discharge cut-off voltage	40.0V
Standard charging current	100A	15OA	200A	250A
Maximum charge heart flow	200A	300A	400A	500A
Standard discharge current	100A	150A	200A	250A
Maximum discharge current	200A	300A	400A	50OA
Maximum peak current	300A	400A	500A	600A
Communication method	RS485/CAN/Bluetooth optional
Charge/discharge by port	M8Studs
Communication Interface	R45
Housing material/color	Metal/White+Black (color optional)
Size	565460360mm	565460540mm	565460720mm	565460900mm
Weight	92kg (About)	138kg (About)	184kg (About	240kg (About)
Temperature range	Charging:0°C-5oC Discharging:-15°℃-6o℃
